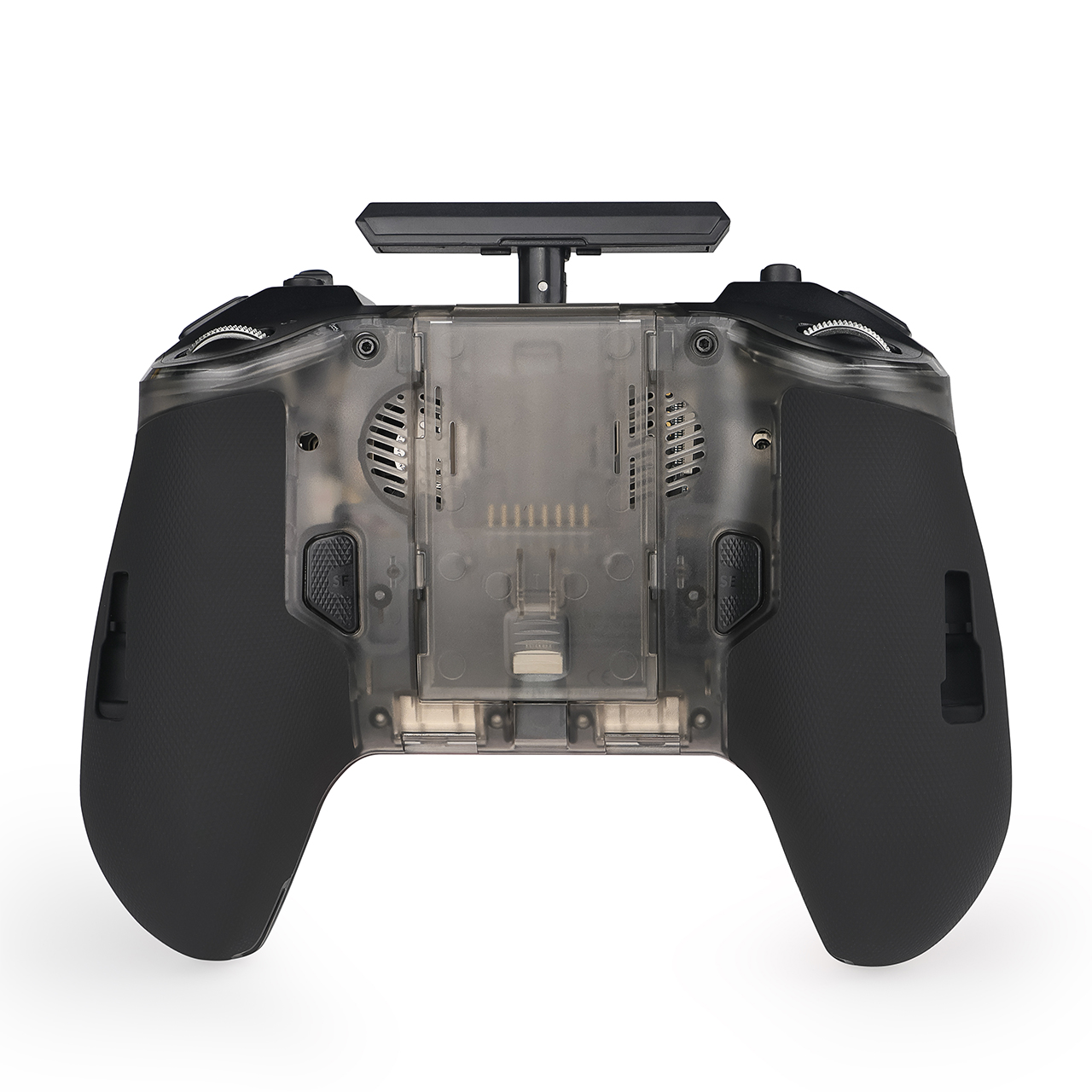

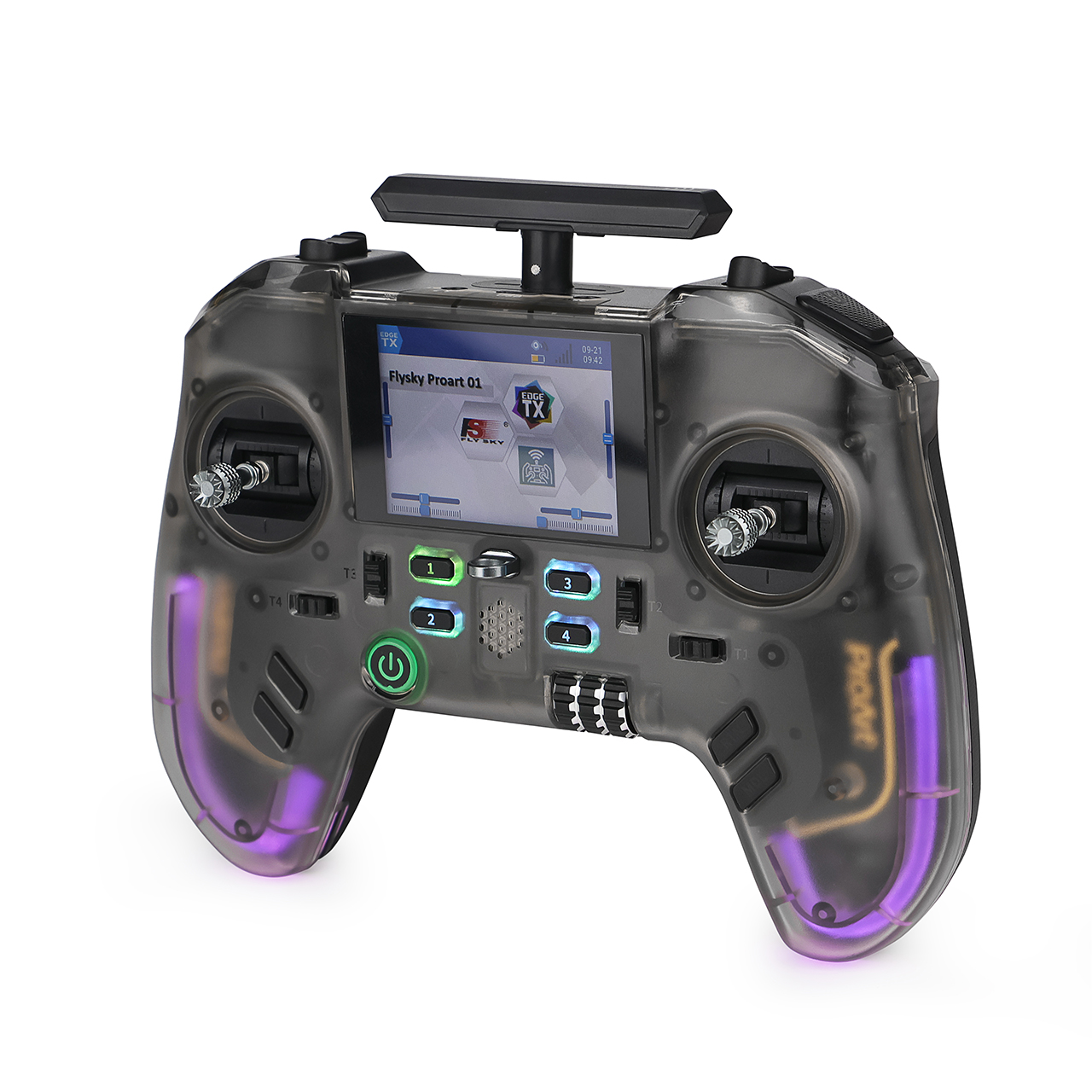

Flysky PA01 ProArt Radio
213,90 €
IVA inclusa
Disponibile
Codice prodotto:
FS102
GTIN/EAN:
4046032118814
Info sui prodotti "Flysky PA01 ProArt Radio"
The FlySky PA01 (ProArt) is a compact high-end open-source transmitter with EdgeTX, switchable internal AFHDS 3 / ExpressLRS RF, and a clever gamepad form factor. The 2.4" color IPS screen and the integrated USB-C interface for updates, uploads, and trainer make setup especially easy. Internally, up to 18 channels are available (AFHDS 3).
- EdgeTX open-source OS maximum flexibility
- Dual RF (internal): AFHDS 3 or ELRS selectable
- High-performance H7 Core chip
- 2.4" IPS color display (240×320 px, non-touch)
- Extendable/foldable single antenna
- Intelligent integrated cooling system
- Balanced center of gravity and built-in gyroscope
- Dual feedback (vibration + sound)
Specifications:
| Transmitter | |
| Model: | PA01 |
| Compatible receivers: | TMR (included), AFHDS 3 receivers & other ELRS receivers |
| Compatible models: | Racing drone, FPV, fixed-wing/glider, heli, car, boat, robot, etc. |
| Channels: | 18 (internal RF); up to 32 (with external RF module) |
| RF / Protocol: | AFHDS 3 / ELRS |
| Transmit power: | 20 dBm |
| Channel resolution: | 4096 |
| Display: | 2.4" IPS, 240×320 px, full-color dot matrix, non-touch |
| Antenna type: | Single antenna (external, fold-out) |
| Power supply: | 7.4 V (2×18650 LiPo) |

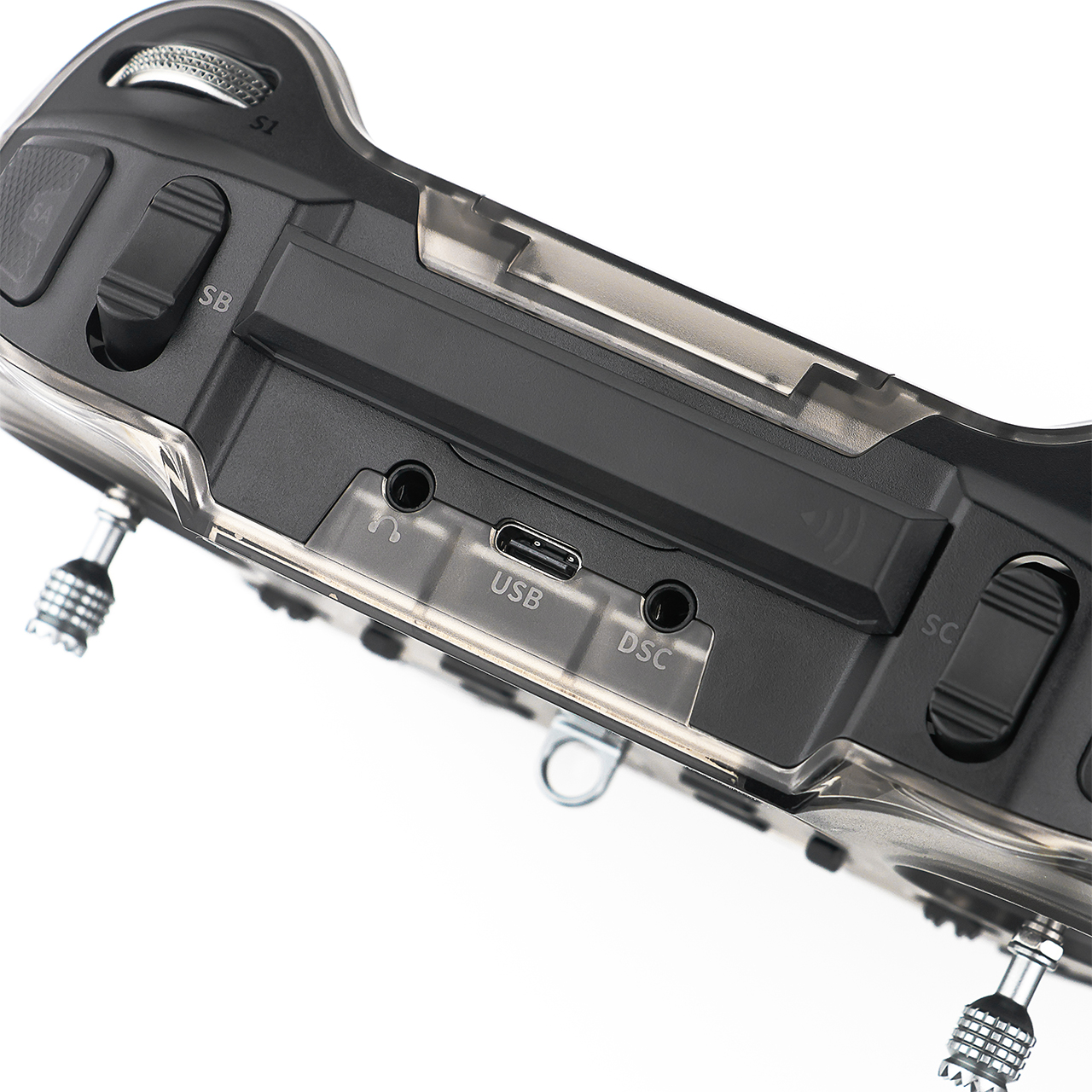

| Interfaces: | USB Type-C, 3.5 mm audio, 3.5 mm trainer (DSC) |
| Firmware update: | Supported (USB-C) |
| Dimensions: | 174.9 × 131.4 × 67.5 mm |
| Weight: | 343 g (transmitter, without batteries) |
| Temperature / Humidity: | −10 °C to +60 °C / 20% to 95% |
| Color: | Transparent black |
| Charging port: | Yes (USB Type-C port) |

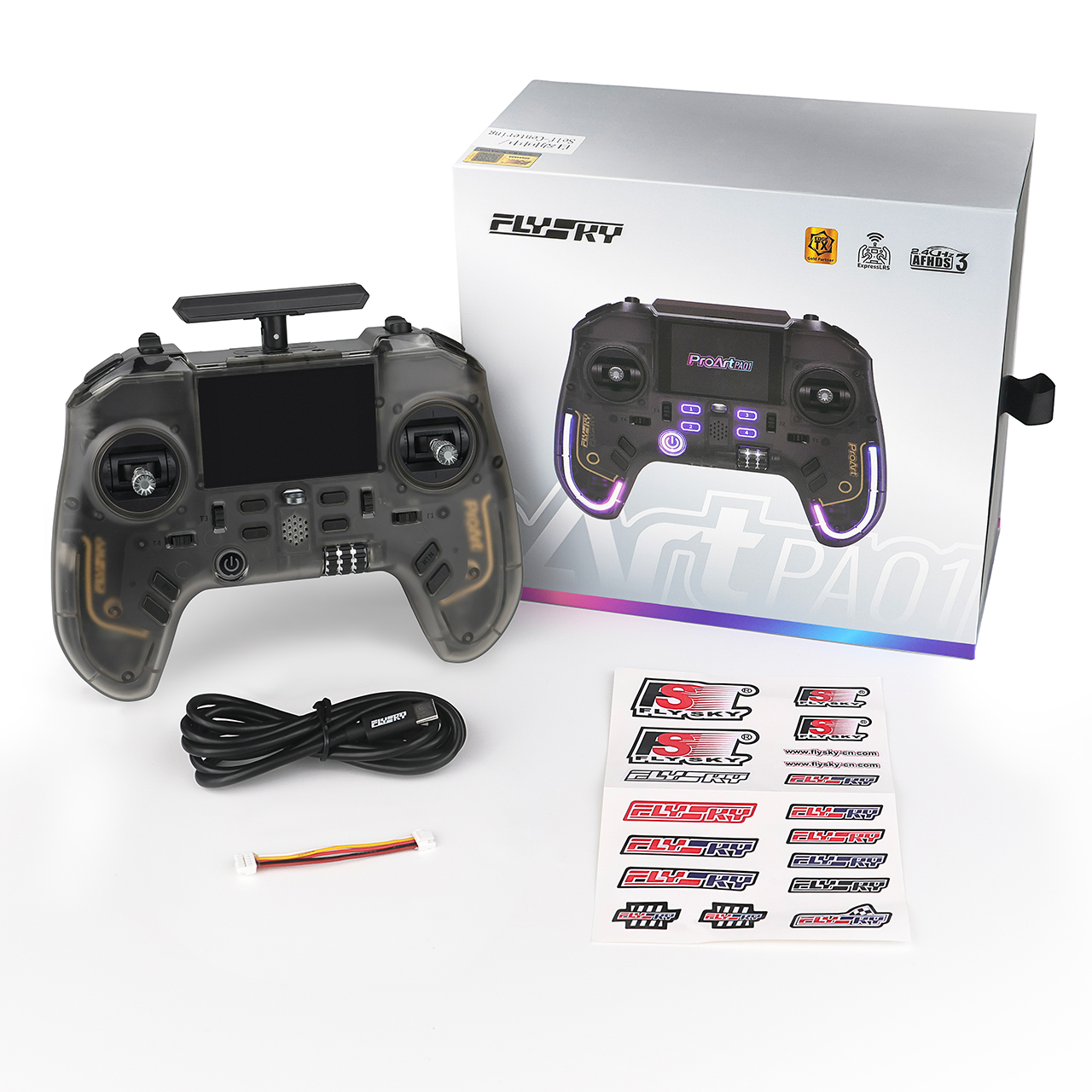

Included:
- FlySky "PA01" transmitter (without batteries)
- USB-C cable
- Receiver (TMR)
- Manual
