SkyRC Battery Discharger and Analyzer 35A 250W
89,90 €
TTC
En stock
Réf. produit :
SK600133
GTIN/EAN:
6930460006141
Informations sur le produit "SkyRC Battery Discharger and Analyzer 35A 250W"

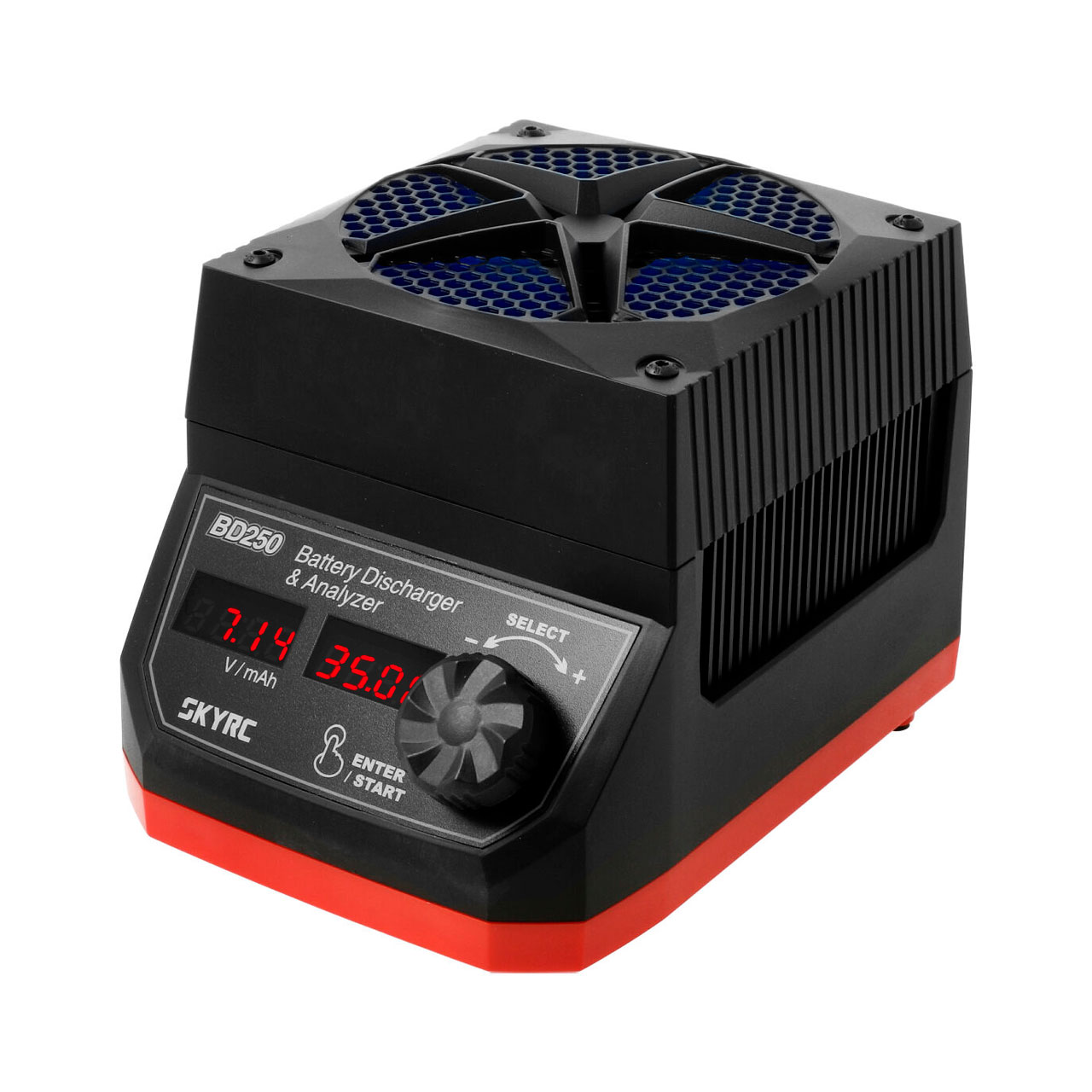

Simple, robust and incredibly powerful - that's the new BD250 discharger by SkyRC. Virtually any battery, regardless of type and size, can be used for discharging. But measuring the battery capacity is also pretty easy with the BD250, successor to the BD200. Stylish and small, plus a state-of-the-art cooling system and IXYS MOSFETs ensure that successful discharging is possible at a constant 250W.
Features
- Breakthrough cooling system
- Simple and innovative operation

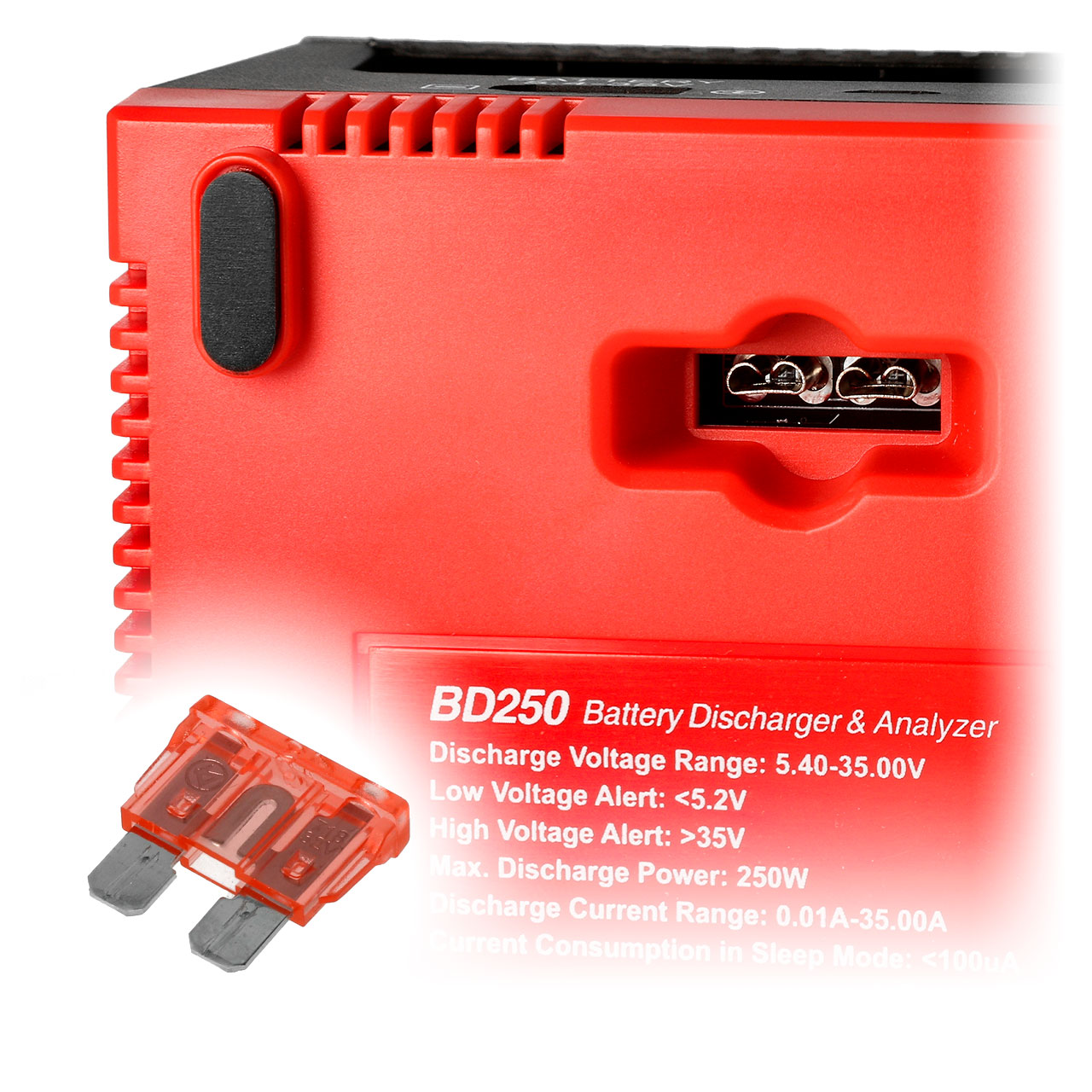

- Reworked safety fuse for an easier replacemen
- 40A replacement fuse inclusive
- Almost any battery compatible for connection
- USB-connection to use for software updates and to connect the discharger to a computer
- Get even more data for performance optimization with the PC software in 30 second-intervals
Technical Specifications:
| Accepted Voltage Range: | 5.40 - 35.00V |
| Low Voltage Alert: | <5.2V |
| High Voltage Alert: | >35V Max. |
| Discharge Power: | 250W |
| Discharge Current Range: | 0.01 - 35.00A |
| No. of Cells: | LiPo: 2-8S, LiHV: 2-8S, NiMH: 6-20 cells |
| Current Consumption in Sleep Mode: | <100uA |
| Current Display Accuracy: | 0.01 - 10.00A ±60mA 10.00 - 35.00A ±3% |
| Voltage Display Accuracy: | 5.4 - 10V <80mV 10 - 20V <120mV 20 - 35V <160mV |
| Capacity Display Accuracy: | +-3% |
| Weight: | 879g |
| Dimensions: | 136.6 x 104.8 x 107mm |
Including:
- BD250 Discharger
- XT60 connector cable
- 40A spare fuse
- Manual
