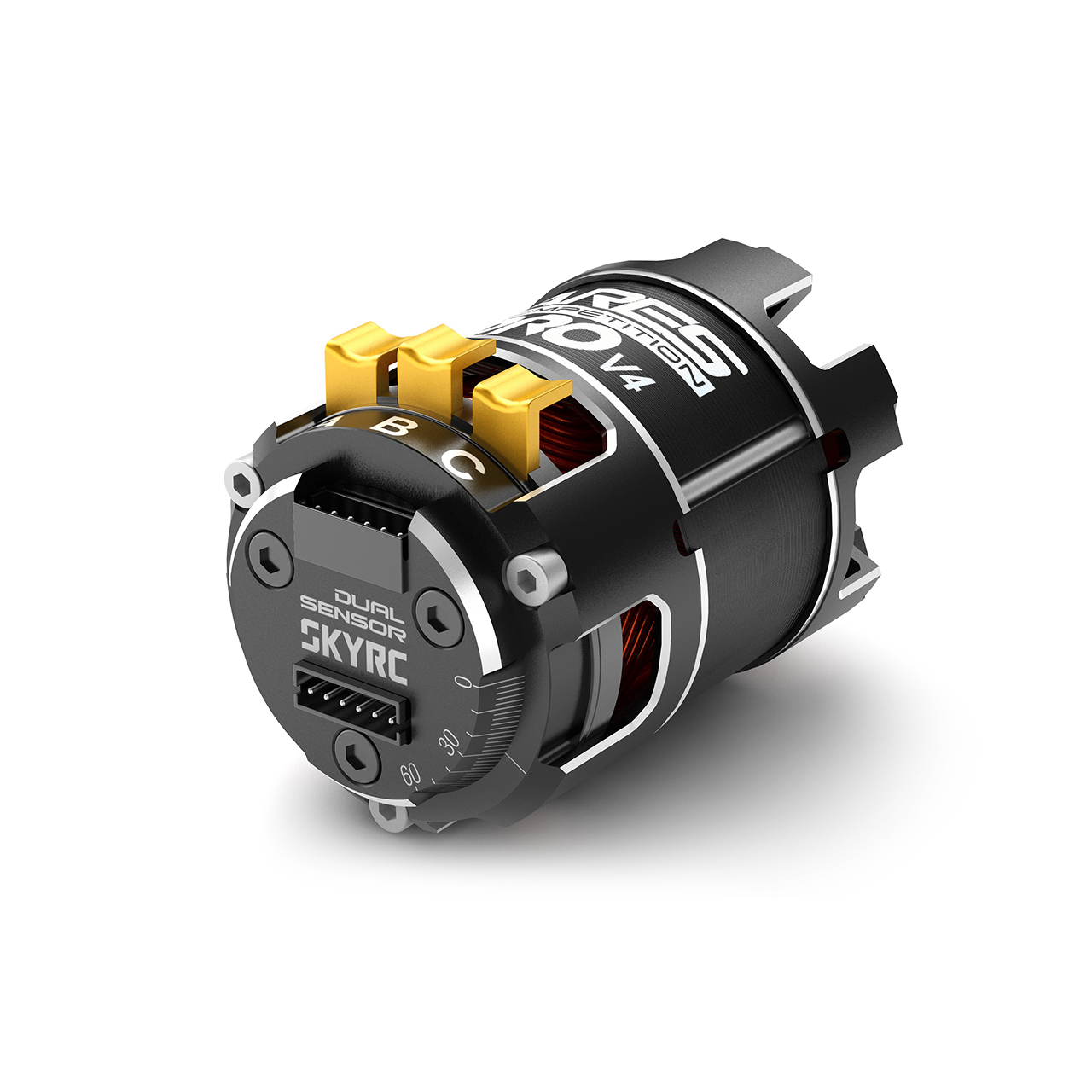

SkyRC Ares Pro V4 540 MODIFIED 8.5T Brushless Motor
Product information "SkyRC Ares Pro V4 540 MODIFIED 8.5T Brushless Motor"
The SkyRC ARES PRO 4 is a sensored competition motor that combines uncompromising control with explosive acceleration. The CNC-machined aluminum heatsink can, precision-balanced rotors, and premium bearings ensure consistent lap times from qualifiers to finals.
Thanks to its dual sensor ports, cable routing can be kept neat and space-saving. The housing is designed to be maintenance-friendly and modular: endbells, stator, rotor, and bearings can be quickly cleaned or replaced with standard RC tools. For on-track fine tuning, the timing can be easily adjusted directly on the motor.
Features:
- ROAR-approved competition motor for 1/10 on-/offroad (Stock & Modified)
- Advanced sensor technology for linear, cog-free power delivery
- CNC-machined aluminum heatsink can for efficient heat dissipation
- High-purity copper windings (up to 220 °C) & heat-resistant neodymium magnets (up to 150 °C)
- Precision rotor, premium ball bearings & durable endbells
- Finely adjustable timing

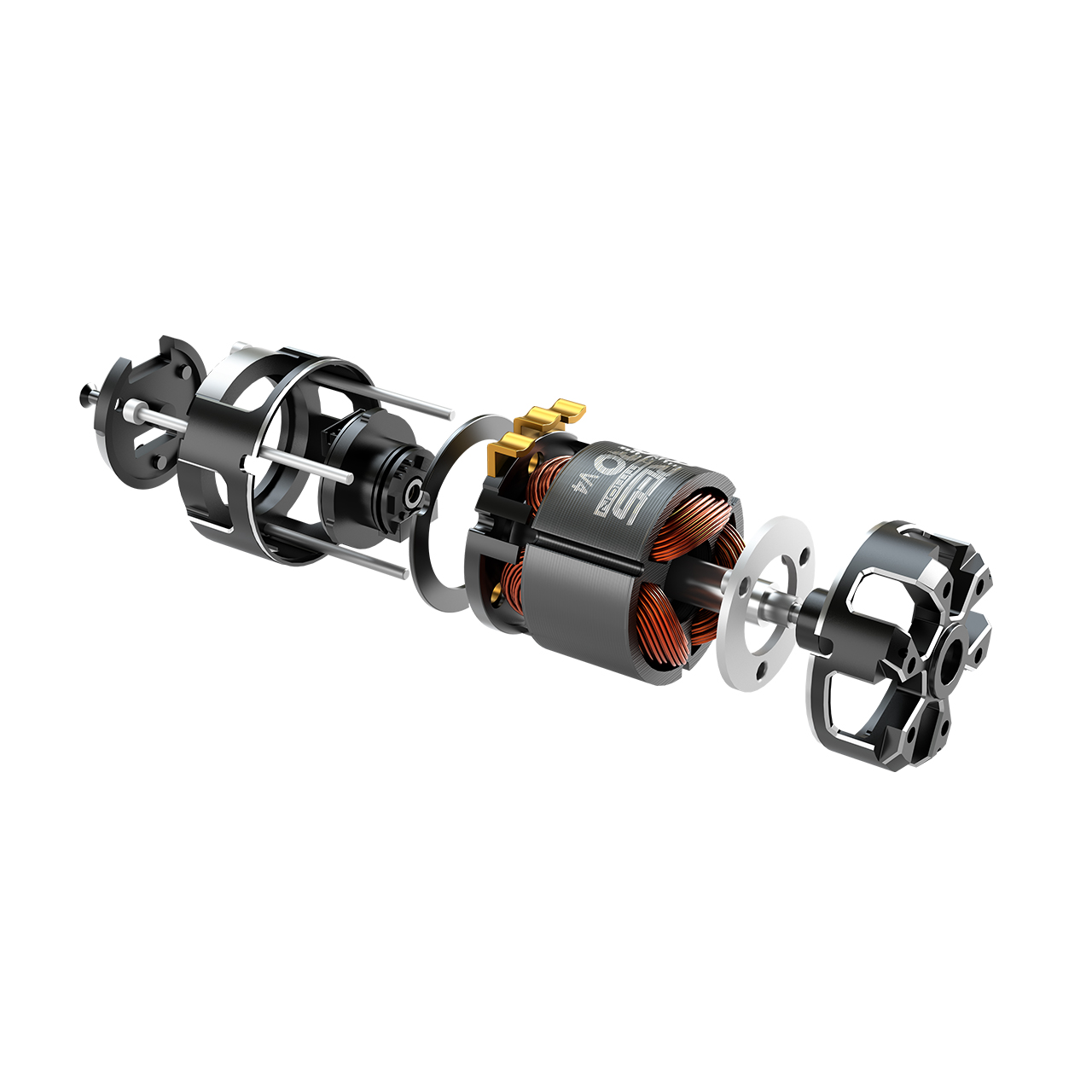

- Fully disassemblable for service & setup
Technical Data:
| Type: | Brushless / Sensored MOD |
| Turns: | 8.5T |
| Timing: | adjustable |
| Sensor ports: | 2× (Dual-Port) |
| Can diameter: | approx. 35.8 mm |
| Can length: | approx. 52 mm (without shaft) |
| Shaft diameter / length: | 3.175 mm |
| Weight: | approx. 148 g |
| Approval: | ROAR-approved |
| Application: | 1/10 Stock & Modified (On-/Offroad) |
Note: The ARES PRO 4 is available in several turn/variant options. KV ratings, current draw, and performance data vary depending on the version.
