Hobbywing QuicRun 0880 Dual Brushed ESC 80A for 1:10
Product information "Hobbywing QuicRun 0880 Dual Brushed ESC 80A for 1:10"
The QuicRun 0880 Dual Brushed ESC has two sets of output wires for simultaneously connecting to two motors which are used synchronously. Its very convenient for vehicles which are driven by two motors.

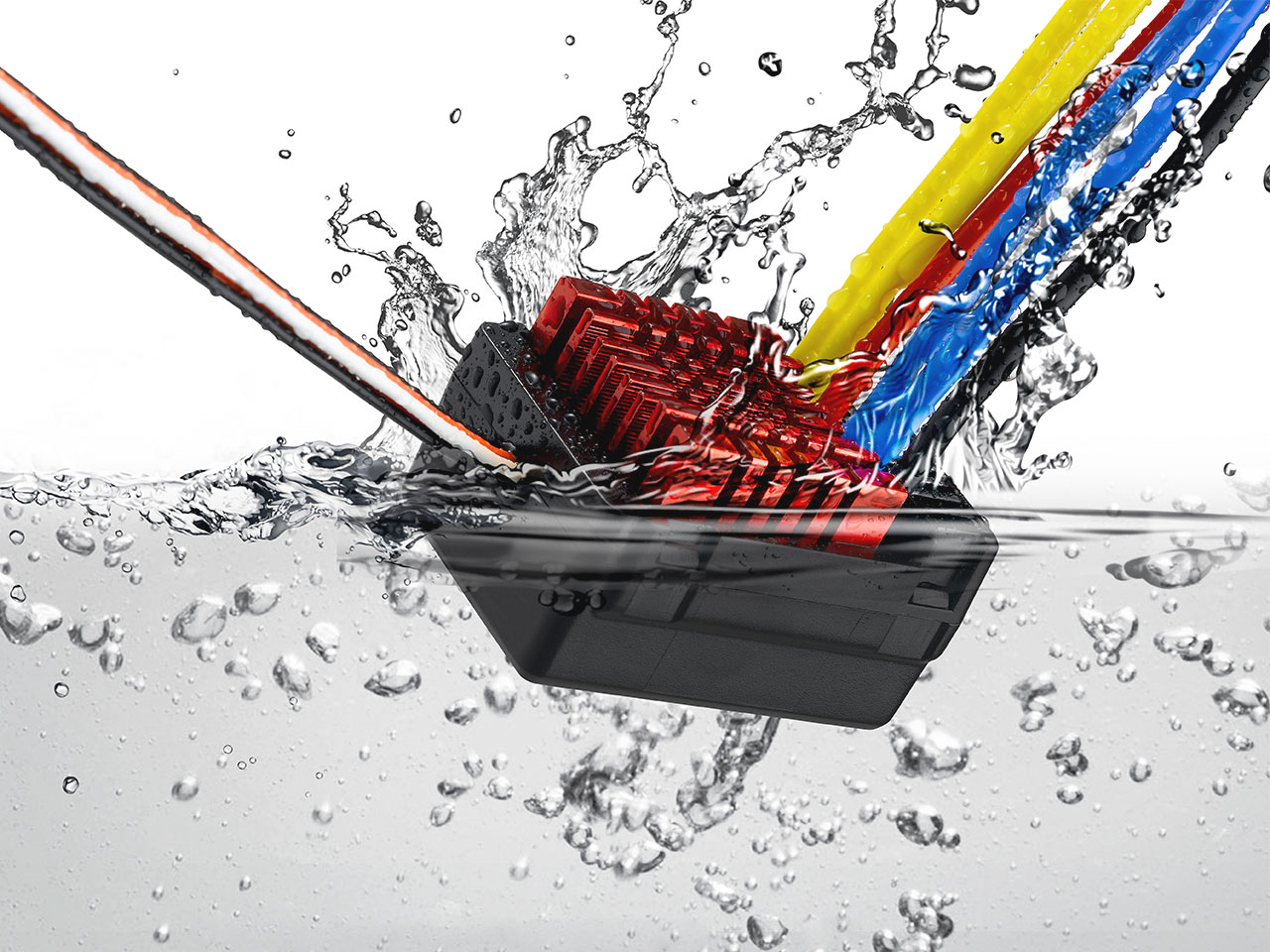

The waterproof and dust-proof design allows the QuicRun 0880 Dual Brushed ESC to be used in all weather conditions without any issue of damage caused to the ESC from water or debris.
The adjustable PWM frequency combined with advanced DEO/freewheeling technology guarantees users great throttle linearity and driving feel. Multiple Programmable Items which features 15 programmable parameter is applicable to various vehicles and tracks.
Features:
- Control of 2 motors simultaneously
- Strong BEC with 6V/4A
- Water and dust proof
- 15 programmable parameter items
- PWM frequency adjustable
- DEO/freewheeling technology for great throttle linearity and driving feeling
- Separate programming port
- Compact design
Technical Specification:
| Typ and motor size: | Brushed 540/550/775 |
| Current const./peak: | 80A/400A |
| Cells: | 2-4s LiPo / 5-12 Zellen NiMH |
| Motor Limit 540/550: | 2s LiPo, 6s NiMH: > 12T or < 30000 RPM 3s LiPo, 9s NiMH: > 18T or < 20000 RPM 4s Lipo, 12s NiMH: > 24T or < 15000 RPM When driving 2 motors, the turns of the motors need to be increased accordingly. |
| BEC: | Switch Mode: 6V/4A |
| Input connector: | No |
| Output connector: | Bullet 4mm (female) |
| Dimension: | 45.9x34.7x26.5mm |
| Weight: | 75g |
| Waterproof: | Yes |
| Applicable: | 1/8, 1/10 Rock Crawler |
Scope of Delivery:
1x ESC
1x Sticker
1x Manual
Optional Accessory:
1x HW30501003 LED-Programm box
