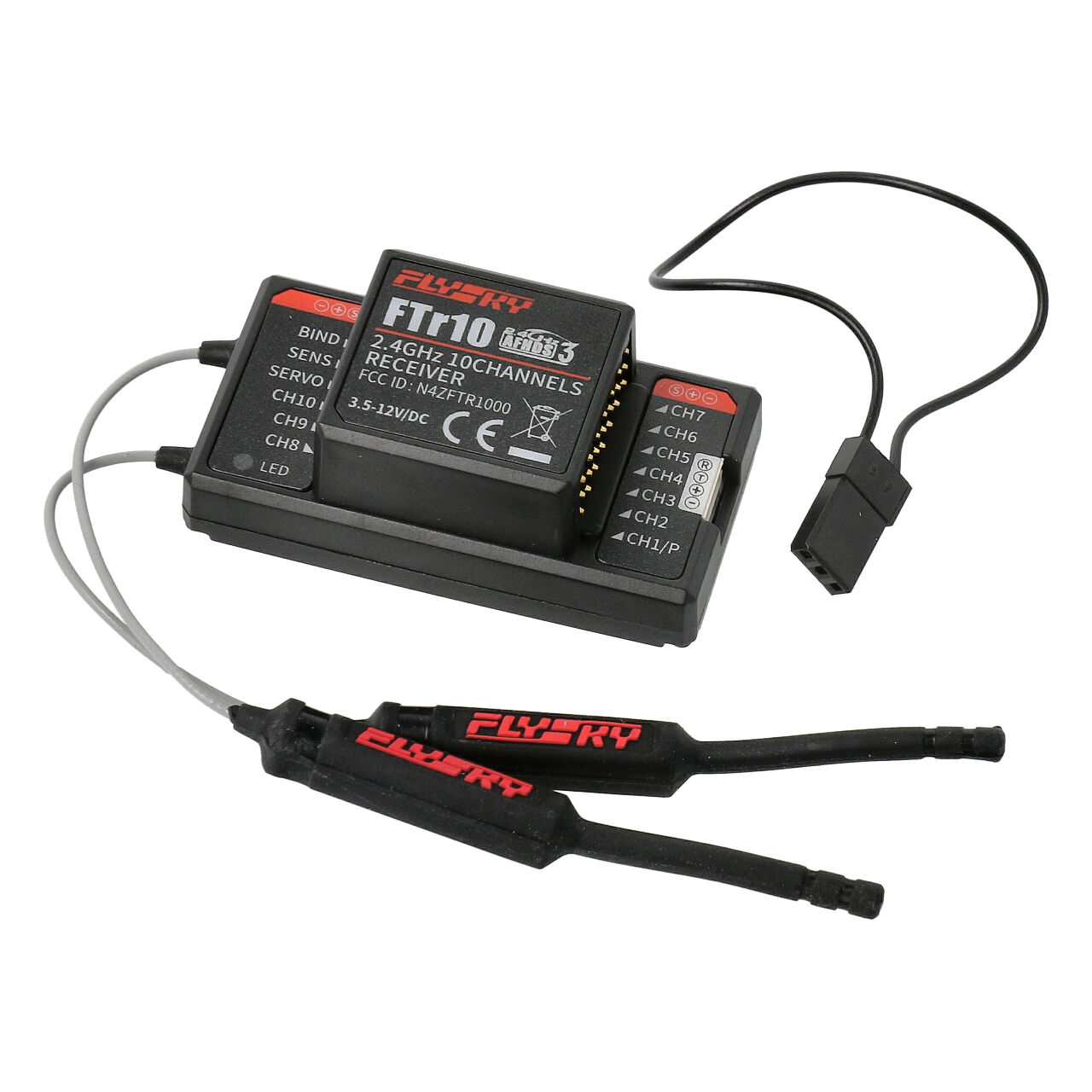

Flysky FTR10 AFHDS3 Receiver 10CH
€56.90
incl. VAT
In Stock
Product number:
FS016
GTIN/EAN:
4046032096143
Product information "Flysky FTR10 AFHDS3 Receiver 10CH"
The FTr10 receiver is the ideal support when using a Flysky remote control. The receiver makes use of a technology used by several Flysky transmitters - the automatic frequency hopping digital system (short: AFHDS3). With a bidirectional transmission system via the antennas this receiver is specially designed for the installation and output of PWM/PPM/i-BUS and S.BUS as well as UART signals.
Technical Specifications
| PWM-Channels: | 10 |
| RF: | 2.4GHz |
| Protocol: | AFHDS 3 |
| Antennas: | Dual (2x103mm) |
| Input Voltage: | 3.5-12V |
| Output: | PWM/PPM/i-BUS/S.BUS/UART |
| RSSI: | Yes |
| Temperature: | -10°C to +60°C |
| Max. Humidity: | 20%-95% |
| Update: | Yes, online |
| Dimensions: | 52x28x22mm |
| Weight: | 22g |
| Suitable for: | Fixed wing, glider, helicopter, drone |
| Compatible Transmitter: | all AFHDS3-Transmitter |
