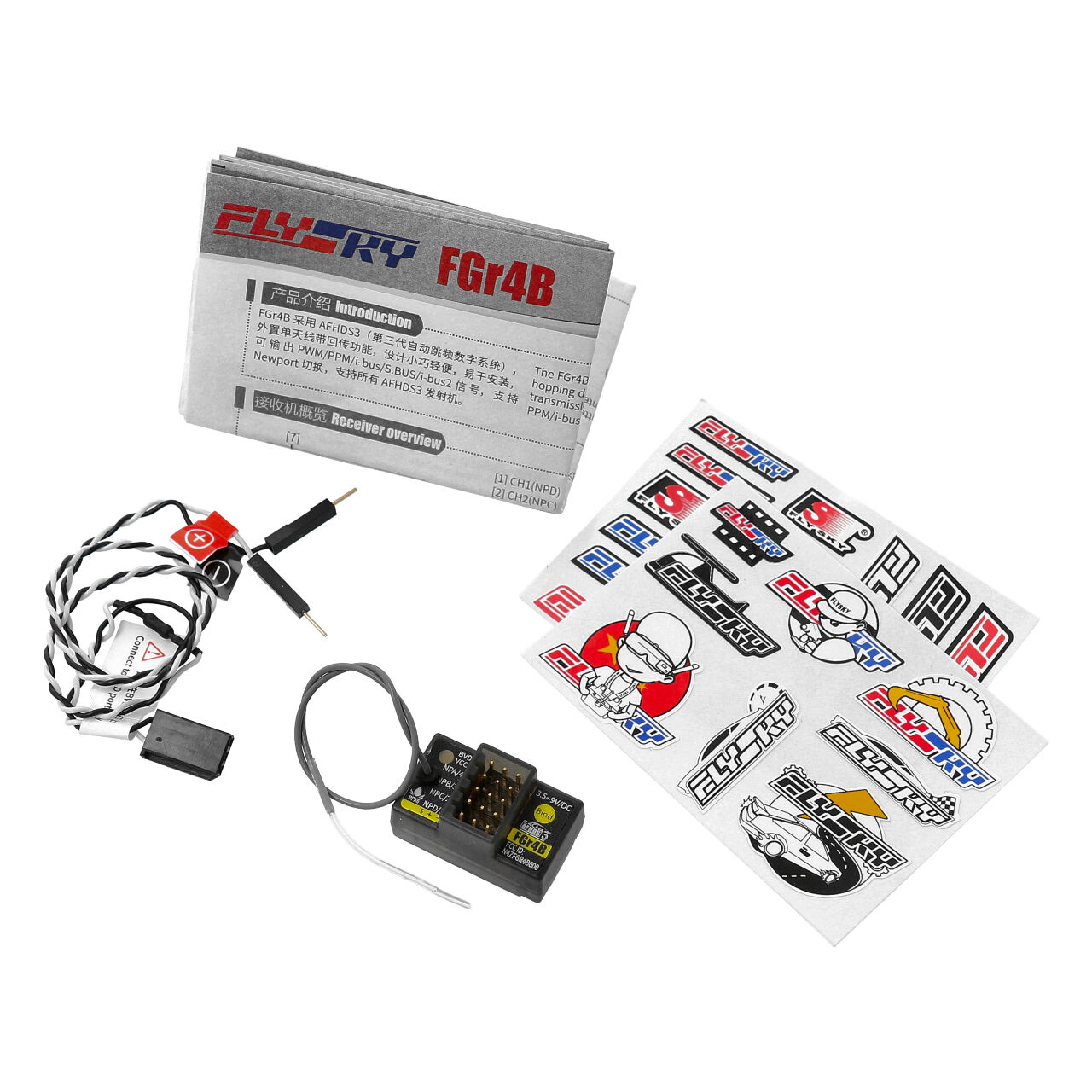

Flysky FGr4B AFHDS3 Receiver 4CH
€53.90
incl. VAT
In Stock
Product number:
FS010
GTIN/EAN:
4046032094705
Product information "Flysky FGr4B AFHDS3 Receiver 4CH"
The FGr4B receiver is the ideal support when using a Flysky remote control. The receiver makes use of a technology used by several Flysky transmitters - the automatic frequency hopping digital system (short: AFHDS3). With a bidirectional transmission system via the antenna, this receiver is specially designed for the installation and output of PWM/PPM/i-BUS out/S.BUS signals. All AFHDS3-capable transmitters are supported.
Technical Specifications
| PWM-Channels: | 4 |
| RF: | 2.4GHz |
| Protocol: | AFHDS 3 |
| Antennas: | Dual |
| Input Voltage: | 3.5-9V |
| Output: | PWM/PPM/i-BUS out/S.BUS |
| Temperature: | -10°C to +60°C |
| Max. Humidity: | 20%-95% |
| Update: | Yes, online |
| Dimensions: | 17x29x16mm |
| Weight: | 6.4g |
| Suitable for: | Cars, Boats, etc. |
| Compatible Transmitter: | all AFHDS3-Transmitter and RF-Modules (PL18, Paladin EV, NB4, NB4 Lite etc.) |
